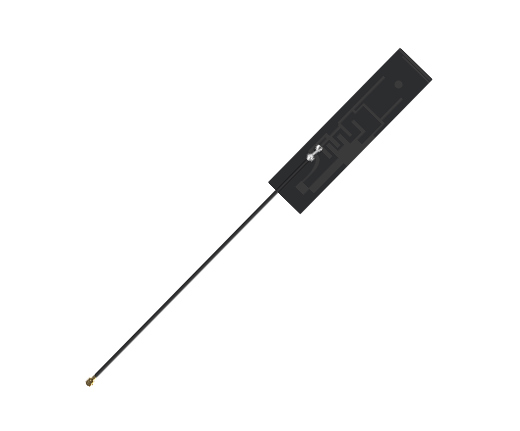

915MHz 4dBi High-Gain FPC Embedded Antenna
Flexible embedded 915MHz 4dBi FPC antenna covering 860–940MHz, with IPEX-1 connector and 140mm RF1.13 cable. Its 85mm×21mm flexible element is suited to higher-gain LoRaWAN devices; cable length can be customized for device-level integration.
| Antenna Type | FPC Embedded Antenna |
|---|---|
| Frequency Range | 915MHz 860-940MHz |
| Gain | 4dBi |
| VSWR | ≤1.5 |
| Connector | IPEX-1 |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 2W |
| Cable | RF1.13 |
| Cable Length | 140mm (customizable) |
| Dimensions | 85mm×21mm |
| Weight | 1g |
| Material | FPC |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
915MHz FPC antenna covers 860–940MHz for higher-gain LoRaWAN devices. This 915MHz FPC antenna provides 4dBi gain with an IPEX-1 connector and 140mm RF1.13 cable. The 915MHz FPC antenna uses an 85×21mm flexible element for wideband performance and adaptable internal placement.
