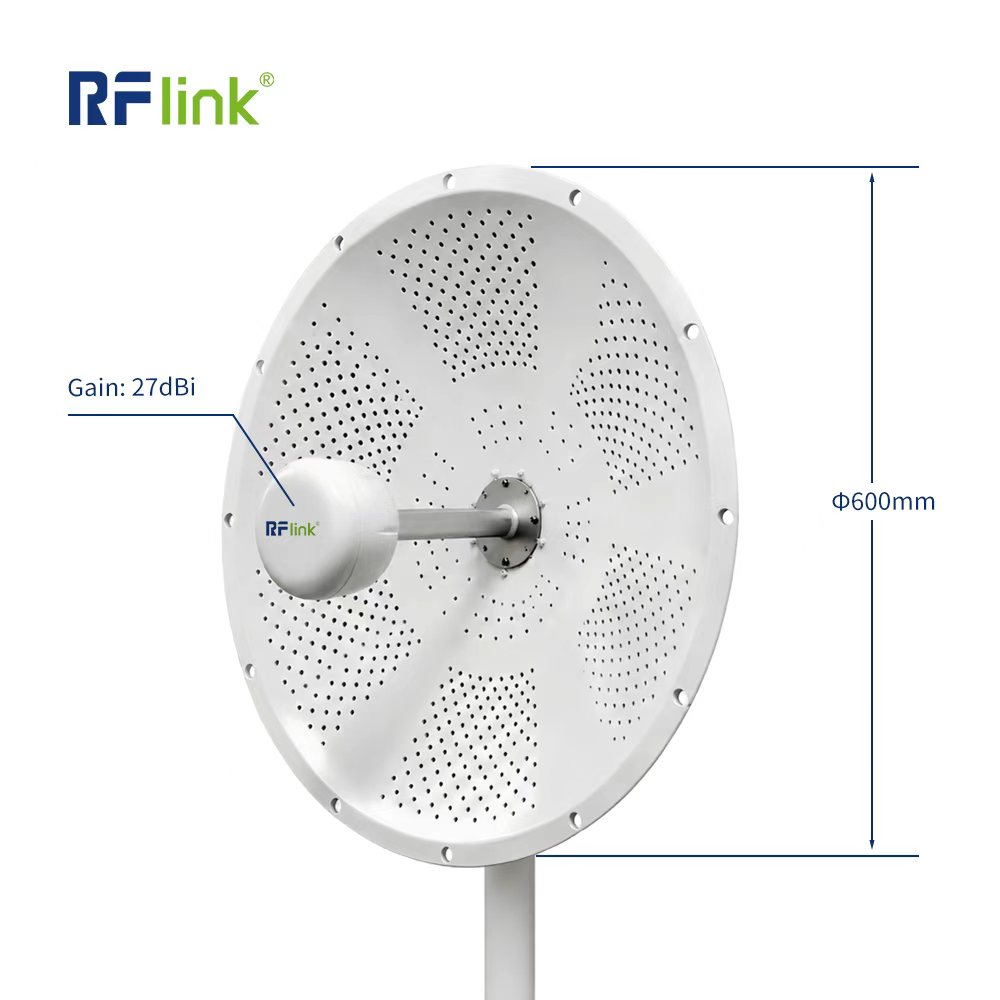

600mm 27dBi 2300-2700MHz Dual-Polarized 4G/5G Parabolic Antenna
The RF-2327-30D is a high-gain 2300-2700MHz parabolic antenna developed for fixed 4G LTE and 5G wireless communication applications operating within the supported frequency range.
Featuring a 600mm reflector, a specified 27 dBi gain, and dual-polarized construction, it is suitable for compatible cellular CPE, fixed wireless access (FWA), and remote-site connectivity projects.
With dual N-Female connectors, IP65 protection, and a directional radiation pattern, the antenna is designed for outdoor installations requiring accurate alignment toward a fixed signal source.
| Frequency Range | 2300MHz-2700MHz |
|---|---|
| Peak Gain | 27dBi |
| VSWR | ≤2.0 |
| Horizontal HPBW | 8° |
| Vertical HPBW | 5° |
| Front-to-Back Ratio | 25 dB |
| Isolation | ≥ 25 dB |
| Connector Type | 2*SMA |
| Impedance | 50Ω |
| Max Input Power | 50W |
2300-2700MHz Parabolic Antenna for 4G LTE and 5G Wireless Connectivity
The RFLink RF-2327-30D 2300-2700MHz parabolic antenna is developed for outdoor wireless communication systems operating across the 2.3–2.7 GHz frequency range.
Featuring a 600mm reflector and a specified gain of 27 dBi, the antenna is intended for fixed directional installations that require focused signal transmission and reception.
Its frequency coverage makes it suitable for evaluation in compatible 4G LTE, 5G NR, and fixed wireless access systems operating within the specified range.
Directional Performance for Fixed Wireless Access
Unlike omnidirectional antennas that receive signals from multiple directions, the RF-2327-30D uses a parabolic reflector to concentrate RF energy toward a selected direction.
The antenna features:
- 27 dBi specified gain
- 8° horizontal half-power beamwidth
- 5° vertical half-power beamwidth
- 25 dB front-to-back ratio
- VSWR ≤ 2.0
This directional performance can be beneficial for fixed wireless installations where a suitable base station or remote radio is located in a known direction.
Actual network performance depends on operating frequency, link conditions, antenna alignment, and connected equipment.
Dual-Polarized Antenna Configuration
The RF-2327-30D features dual polarization and two N-Female connectors with 450mm cable assemblies.
The dual-port configuration allows integration with compatible wireless communication equipment, including suitable cellular CPE and dual-port radio systems.
Polarization isolation of ≥ 25 dB helps maintain separation between the two antenna polarization channels.
Designed for Outdoor Communication Projects
The antenna uses a 600mm reflector with a total specified weight of 3.5kg.
Its outdoor installation features include:
- IP65 protection rating
- 35–50mm mounting pole diameter
- Dual N-Female connectors
- 450mm RF cable assemblies
- 50Ω nominal impedance
- 50 W maximum input power
These mechanical features support installation in fixed outdoor wireless communication environments.
Typical Applications
- 4G LTE fixed wireless access
- Compatible 5G NR CPE installations
- Remote-area cellular connectivity
- Industrial wireless communication
- Private LTE/5G network projects
- Fixed directional links within the 2300–2700 MHz range
Before installation, confirm the actual operating band of the network, the CPE or radio RF interfaces, and the required antenna polarization.
Technical Specifications
Custom Antenna Support from RFLink
RFLink provides RF antenna engineering and manufacturing support for wireless equipment manufacturers, network integrators, and OEM/ODM projects.
For applications requiring different frequency coverage, connector interfaces, cable assemblies, or mechanical configurations, contact RFLink with your wireless system requirements.
Contact RFLink to discuss the antenna requirements for your 4G/5G wireless project.
