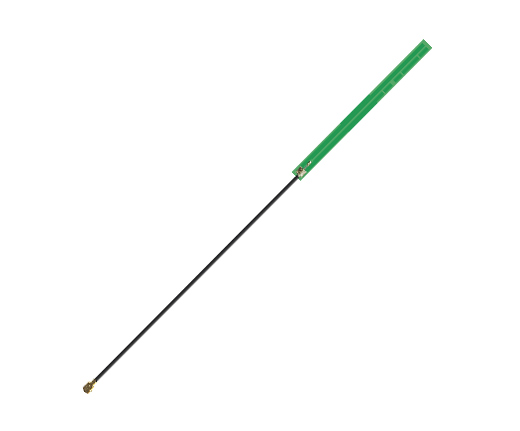

915MHz 3dBi Ultra-Narrow PCB Embedded Antenna
Embedded 915MHz 3dBi ultra-narrow PCB antenna covering 860–940MHz, with IPEX-1 connector and 115mm RF1.13 cable. Its 75mm×5mm PCB form factor supports LoRaWAN sensors and narrow terminals, with customizable cable length for compact device integration.
| Antenna Type | PCB Embedded Antenna |
|---|---|
| Frequency Range | 915MHz 860-940MHz |
| Gain | 3dBi |
| VSWR | ≤1.5 |
| Connector | IPEX-1 |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 2W |
| Cable | RF1.13 |
| Cable Length | 115mm (customizable) |
| Dimensions | 75mm×5mm |
| Weight | 1g |
| Material | PCB |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
915MHz PCB antenna covers 860–940MHz for LoRaWAN sensors and narrow terminals. This 915MHz PCB antenna uses a 75×5mm board, IPEX-1 connector, and 115mm RF1.13 cable for edge mounting. The 915MHz PCB antenna offers 3dBi all-around performance, low weight, and repeatable assembly.
