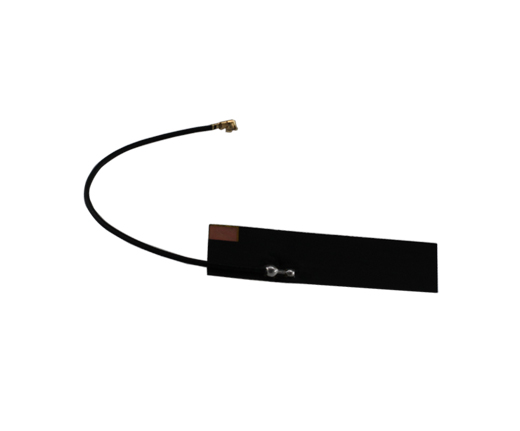

915MHz 3dBi Flexible FPC Embedded Antenna with IPEX Connector
Flexible embedded 915MHz 3dBi FPC antenna covering 868–930MHz, with IPEX-1 connector and 90mm RF1.13 cable. Its 45×10mm flexible element is suited to LoRa terminals and sensors; cable length can be customized for device-level integration.
| Antenna Type | FPC Embedded Antenna |
|---|---|
| Frequency Range | 868~930MHz |
| Gain | 3dBi |
| VSWR | ≤1.5 |
| Connector | IPEX-1 |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 2W |
| Cable | RF1.13 |
| Cable Length | 90mm (customizable) |
| Dimensions | 45×10mm |
| Weight | 1g |
| Material | FPC |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
915MHz flexible FPC antenna covers 868–930MHz for LoRa terminals and sensors. This 915MHz flexible FPC antenna uses a 45×10mm element, IPEX-1 connector, and 90mm RF1.13 cable. The 915MHz flexible FPC antenna offers 3dBi all-around performance with lightweight, conformable installation.
