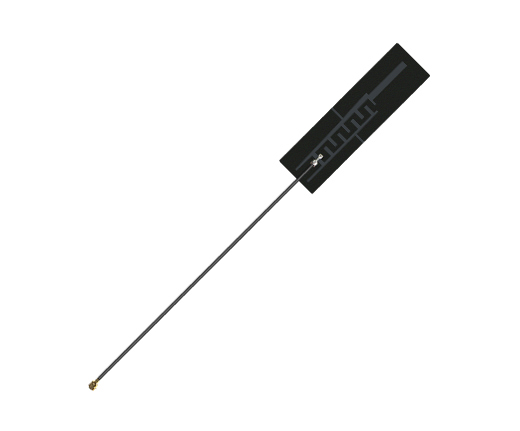

915MHz 3.5dBi Flexible FPC Embedded Antenna
Flexible embedded 915MHz 3.5dBi FPC antenna covering 900–940MHz, with IPEX-1 connector and 121mm RF1.13 cable. Its 70mm×20mm flexible element is suited to LoRaWAN gateways and asset trackers; cable length can be customized for device-level integration.
| Antenna Type | FPC Embedded Antenna |
|---|---|
| Frequency Range | 915MHz 900-940MHz |
| Gain | 3.5dBi |
| VSWR | ≤2.0 |
| Connector | IPEX-1 |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 2W |
| Cable | RF1.13 |
| Cable Length | 121mm (customizable) |
| Dimensions | 70mm×20mm |
| Weight | 1g |
| Material | FPC |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
915MHz FPC antenna covers 900–940MHz for LoRaWAN gateways and asset trackers. This 915MHz FPC antenna uses a 70×20mm flexible element, IPEX-1 connector, and 121mm RF1.13 cable. The 915MHz FPC antenna provides 3.5dBi all-around performance with flexible adhesive mounting inside compact housings.
