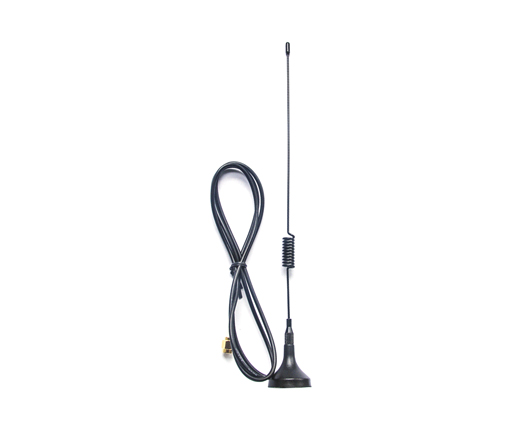

868MHz 3.5dBi Magnetic Mount Antenna with 1m Cable
Magnetic-mount 868MHz 3.5dBi magnetic mount antenna covering 848–888MHz, with SMA male connector and 1m RG174 cable. Designed for vehicles and gateways, it enables quick non-permanent installation with reliable omnidirectional coverage.
| Antenna Type | Magnetic Mount Antenna |
|---|---|
| Frequency Range | 848-888MHz |
| Gain | 3.5 dBi |
| VSWR | ≤2.0 |
| Connector | SMA Male |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 50W |
| Cable | RG174 |
| Cable Length | 1m (customizable) |
| Dimensions | 290mm |
| Weight | 31g |
| Material | Carbon Steel + ABS |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
868MHz magnetic mount antenna covers 848–888MHz for vehicles and gateways. This 868MHz magnetic mount antenna offers 3.5dBi gain, a magnetic base, and 1m RG174 cable with SMA male connector. The 868MHz magnetic mount antenna enables fast placement, flexible routing, and stable all-around coverage.
