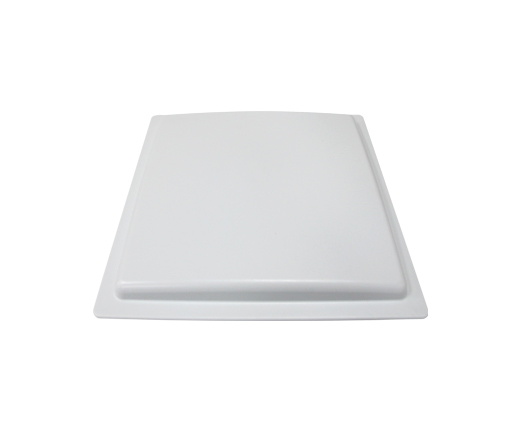

868/915MHz 14dBi High-Gain Circular Polarized Panel Antenna
Circularly polarized 868/915MHz 14dBi circular polarized panel antenna covering 830–980MHz, with N female connector and 50W power handling. The 445×445×38mm panel provides focused directional coverage for LoRa and UHF directional sites and fixed reader or gateway installations.
| Antenna Type | Directional Panel Antenna |
|---|---|
| Frequency Range | 868/915MHz 830-980MHz |
| Gain | 14dBi |
| VSWR | ≤1.5 |
| Connector | N Female |
| Polarization | Circular |
| Radiation Pattern | Directional |
| Max Input Power | 50W |
| Cable | |
| Cable Length | |
| Dimensions | 445×445×38mm |
| Weight | 3.7kg（±10g） |
| Material | ABS |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +55°C |
868/915MHz circular polarized panel antenna covers 830–980MHz for LoRa and UHF. This 868/915MHz circular polarized panel antenna delivers 14dBi gain and 50W handling through an N female connector. The 868/915MHz circular polarized panel antenna forms focused coverage for long-range sites.
