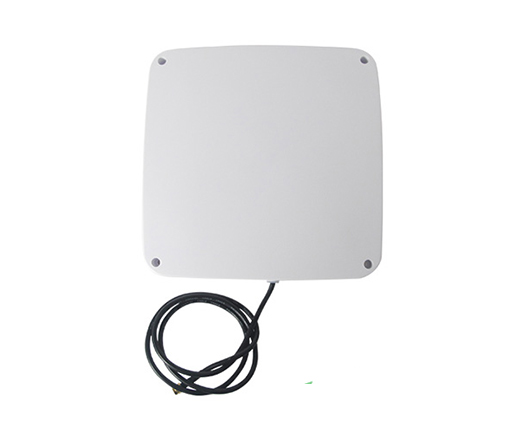

850–930MHz 10dBi Circular Polarized RFID Panel Antenna
Circularly polarized 850-930MHz 10dBi RFID panel antenna covering 850–930MHz, with SMA male connector and 50W power handling. The 231mm×231mm×21mm panel provides focused directional coverage for logistics and tracking systems and fixed reader or gateway installations.
| Antenna Type | Directional Panel Antenna |
|---|---|
| Frequency Range | 850MHz-930MHz |
| Gain | 10dBi |
| VSWR | ≤1.5 |
| Connector | SMA Male |
| Polarization | Circular |
| Radiation Pattern | Directional |
| Max Input Power | 50W |
| Cable | |
| Cable Length | 1m (customizable) |
| Dimensions | 231mm×231mm×21mm |
| Weight | 400g |
| Material | F4B |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
RFID circular polarized panel antenna covers 850–930MHz for logistics and tracking. This RFID circular polarized panel antenna provides 10dBi gain and an SMA male connector. The RFID circular polarized panel antenna creates focused 50W coverage for reliable read range and fixed installation.
