700-960MHz / 1710-2700MHz High-Gain Magnetic Helical Antenna
A high-gain magnetic helical antenna for 2G, 3G, 4G LTE, cellular routers, wireless gateways, industrial terminals, vehicle-mounted devices, and M2M communication systems. Custom options are available for cable length, connector, antenna size, gain, magnetic base, and housing design.
| Frequency Range | 1710-2130MHz, 2320-2655MHz, 3400-3600MHz, 820-960MHz |
|---|---|
| Peak Gain | 3dBi |
| VSWR | ≤2.0 |
| Polarization | Vertical |
| Impedance | 50Ω |
| Radiation Pattern | Omni-directional |
| Max Input Power | 10W |
| Connector Type | SMA |
| Mounting Type | Magnetic |
| Customization | Supported |
| Frequency | 4G, 5G |

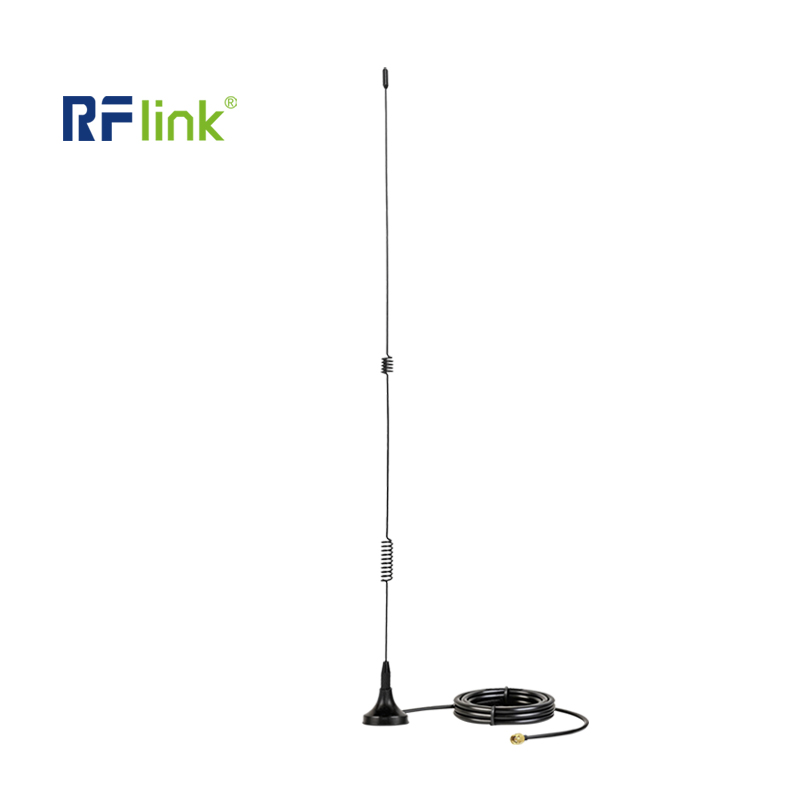

700-960MHz / 1710-2700MHz High-Gain Magnetic Helical Antenna
This high-gain magnetic helical antenna is designed for cellular communication applications, covering 700-960MHz and 1710-2700MHz frequency bands. It is suitable for 2G, 3G, 4G LTE, cellular routers, wireless gateways, industrial terminals, remote monitoring systems, vehicle-mounted devices, and M2M communication equipment.
With a helical antenna structure and magnetic base design, it can be easily mounted on metal surfaces such as equipment housings, cabinets, vehicles, and communication terminals. The higher gain design makes it suitable for applications that require stronger signal reception and more stable cellular connectivity.
Custom antenna design is available. If the standard cable length, connector type, antenna size, gain, magnetic base, helical structure, or housing appearance does not meet your project requirements, we can customize the antenna according to your device structure, installation environment, and RF performance needs.
