600mm 26dBi 1710-4200MHz Dual-Polarized 4G 5G Parabolic Antenna
The RF1742-6026D is a 600 mm high-gain dual-polarized parabolic antenna covering 1710–4200 MHz for 4G LTE and 5G Sub-6 GHz wireless systems. With 26 dBi gain, dual-linear horizontal and vertical polarization, and high directional performance, it is designed for long-range point-to-point links, base station backhaul, private networks, and remote wireless coverage.
The 600 mm reflector is available in solid dish and separated dish configurations to meet different transportation, installation, and project requirements.
| Frequency Range | 1710-4200MHz |
|---|---|
| Impedance | 50Ω |
| Max Input Power | 50W |
| Peak Gain | 26dBi |
| Polarization | Dual-Linear Horizontal + Vertical |
| VSWR | ≤1.8 |
| HPOL Beamwidth | 8~20° |
| VPOL Beamwidth | 3~7° |
| F/R Ratio | ≥ 29dB |
| Frequency | 4G, 5G |
Product Description
The RF1742-6026D 600mm parabolic antenna is a high-gain directional antenna engineered for long-distance broadband wireless communication across the 1710–4200 MHz frequency range.
Combining a precision parabolic reflector with a dual-linear polarized feed system, the antenna provides 26 dBi gain with horizontal and vertical polarization in a single antenna system. Its highly directional radiation pattern helps concentrate RF energy toward the target link, improving link performance while reducing interference from unwanted directions.
The wide operating bandwidth makes the RF1742-6026D suitable for a variety of 4G LTE and 5G Sub-6 GHz applications, including LTE Band 1, Band 3 and Band 41 as well as 5G n78, n79 and C-Band deployments.
Solid or Separated 600mm Reflector
The 600 mm model is available with two reflector configurations:

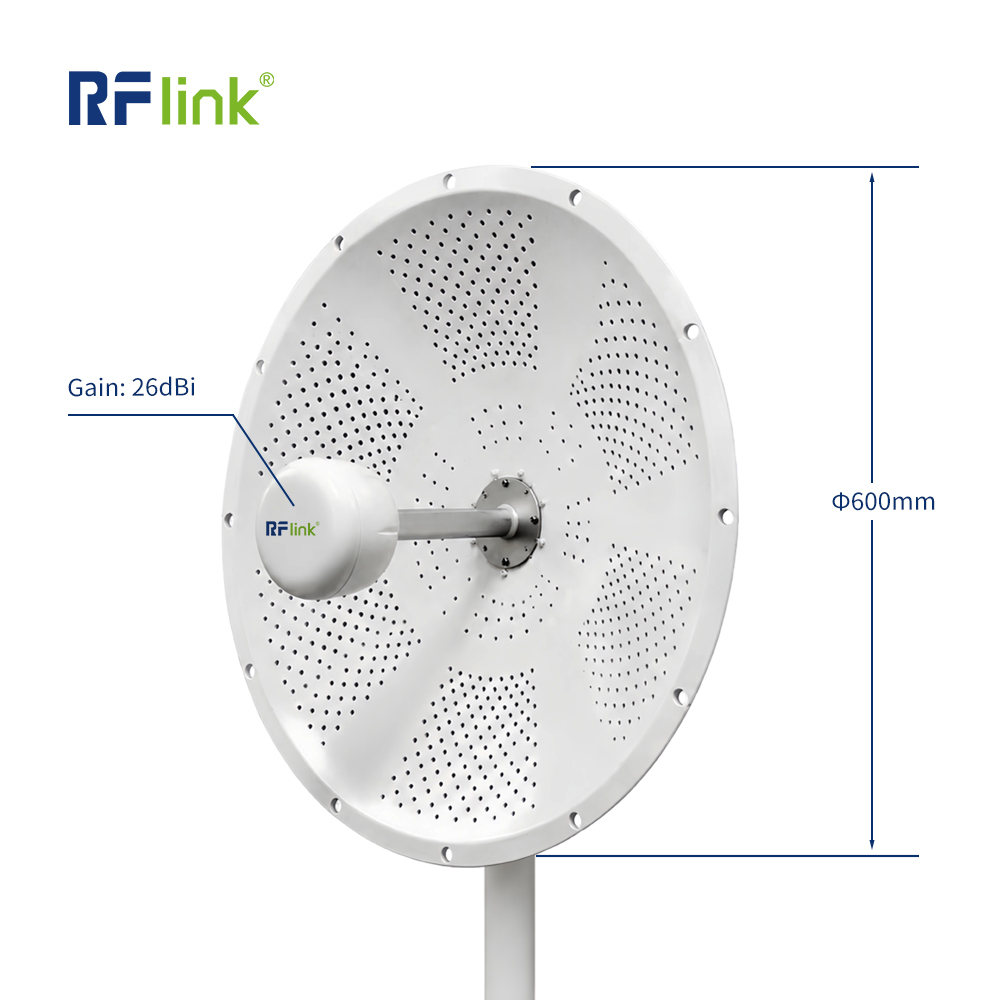

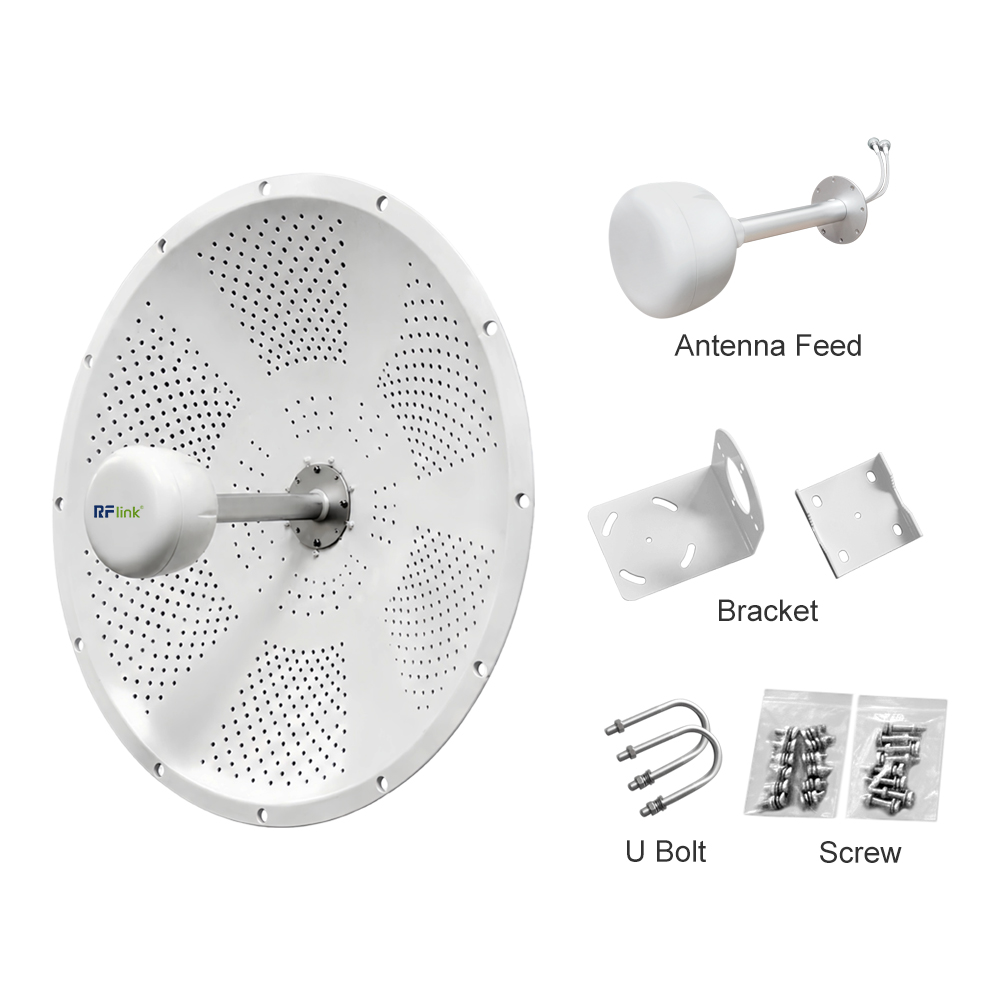

- Solid Dish – one-piece reflector construction for straightforward installation and consistent reflector geometry.

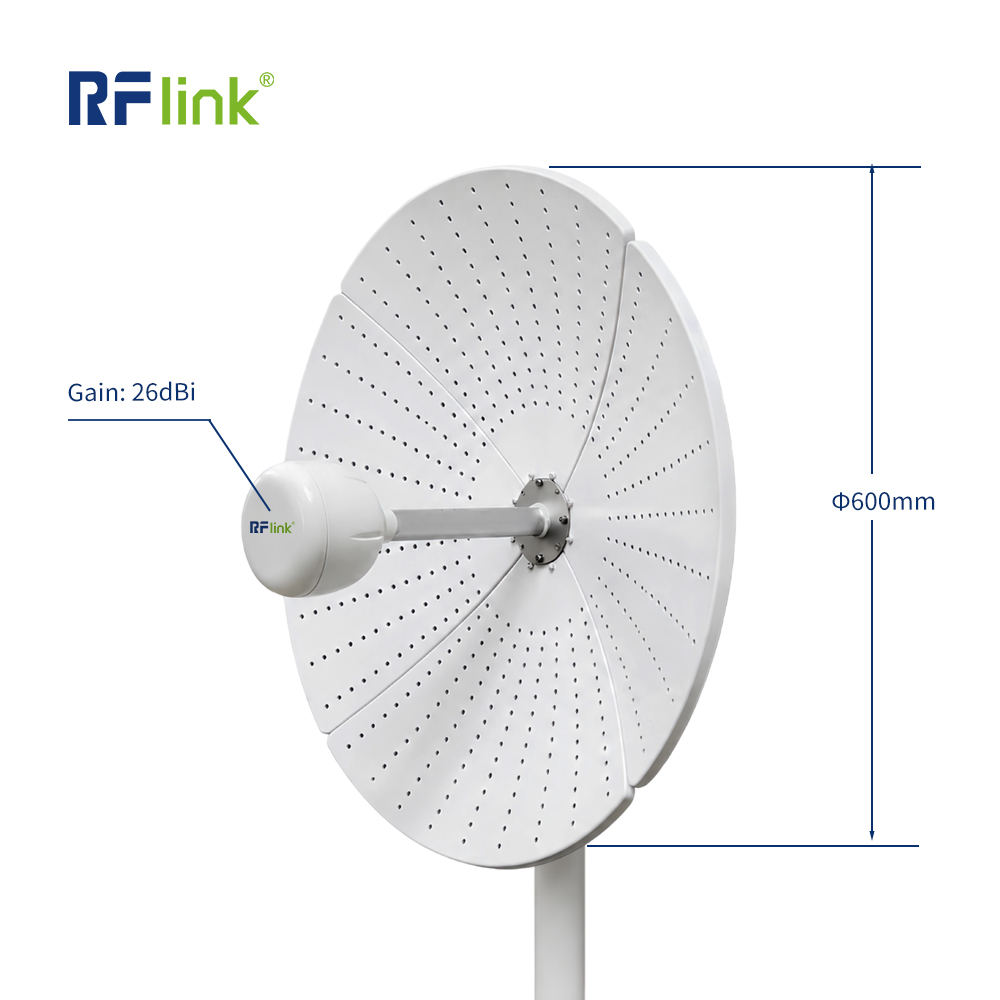

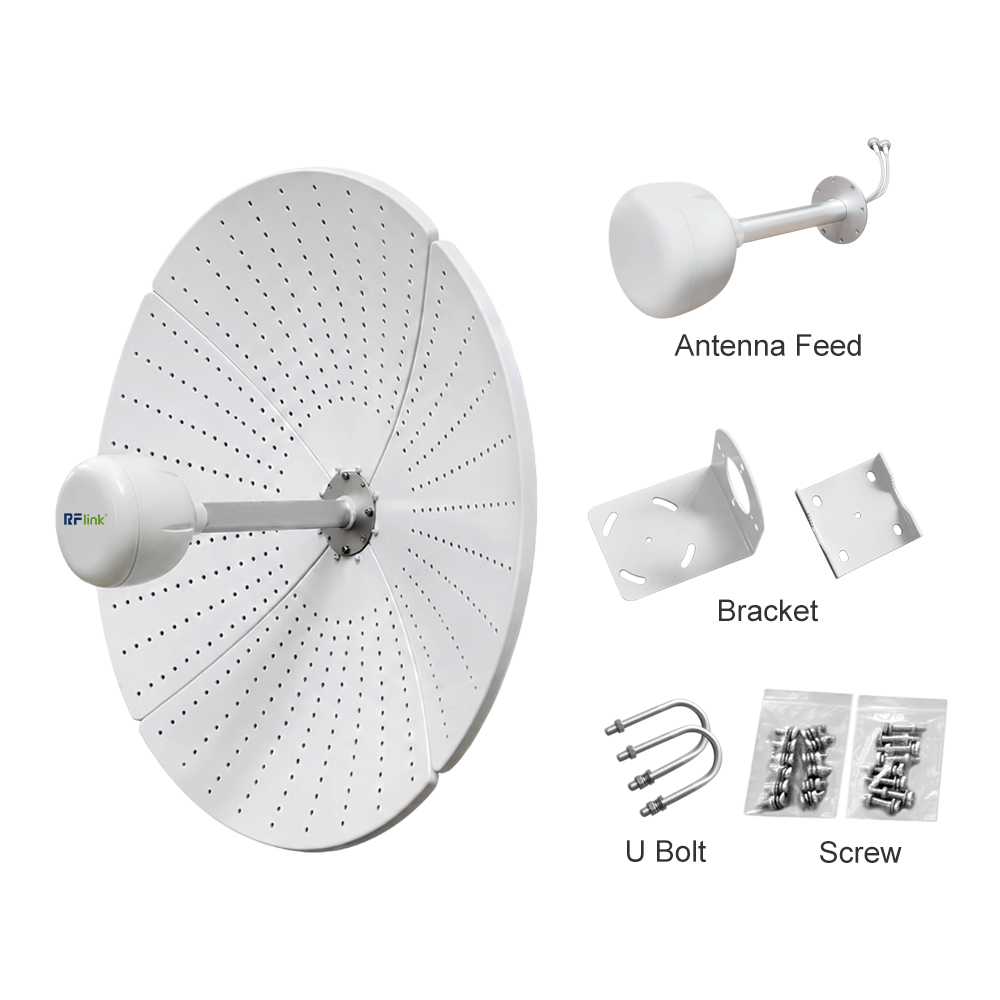

- Separated Dish – sectional reflector construction designed to make packaging and transportation more convenient, especially for export shipments and project deployments.
Both configurations use the same antenna platform and are intended for high-gain directional wireless links.
Dual-Polarized Design
The antenna supports dual-linear horizontal and vertical polarization, allowing it to work with dual-polarized wireless equipment and MIMO communication systems.
Cross-polarization isolation of ≥28 dB helps reduce interaction between the two polarization channels and supports stable link performance in demanding wireless environments.
High-Gain Long-Range Communication
With 26 dBi gain and a front-to-back ratio of ≥29 dB, the antenna provides strong directional performance for long-distance links.
Typical applications include:
- 4G/5G base station backhaul
- Long-range point-to-point wireless bridging
- Private wireless networks
- Remote area broadband coverage
- Mining site communication
- Forest and border monitoring networks
- Emergency communication systems
- Industrial wireless networks
- Wireless infrastructure capacity expansion
Wideband 1710–4200 MHz Coverage
Instead of being limited to a single cellular band, the antenna covers a wide 1.71–4.2 GHz frequency range, allowing one antenna platform to support multiple LTE and 5G frequency bands.
This makes it suitable for system integrators and wireless equipment manufacturers that need a flexible high-gain antenna solution for different regional networks or project frequencies.
Mechanical and Environmental Design
The RF1742-6026D is designed for outdoor directional installations and supports pole mounting.
With wind loading rated at 180 km/h and wind survivability up to 200 km/h (125 mph), the antenna is suitable for outdoor communication projects where reliable mechanical performance is required.
Key Specifications
- Model: RF1742-6026D
- Frequency Range: 1710–4200 MHz
- Reflector Diameter: Ø600 mm
- Gain: 26 dBi
- Polarization: Dual-Linear Horizontal + Vertical
- Connector: N-Female
- VSWR: ≤1.8
- Input Impedance: 50 Ω
- Maximum Input Power: 50 W
- HPOL Beamwidth: 8–20°
- VPOL Beamwidth: 3–7°
- Front-to-Back Ratio: ≥29 dB
- Cross-Polarization Isolation: ≥28 dB
- Weight: 4.5 kg
- Wind Loading: 180 km/h
- Wind Survivability: 200 km/h (125 mph)
- Pole Mounting Diameter: 35–40 mm
- Reflector Options: Solid / Separated
Custom Antenna Support
RFLink provides antenna engineering support from product selection and RF evaluation to customized antenna development and production.
For projects requiring different frequency bands, connectors, cable assemblies, installation structures, or other antenna specifications, please contact RFLink with your wireless system requirements.
