When a project needs WiFi across a yard, farm, industrial site, campground, warehouse exterior, construction area, resort, school campus, or other large space, the first question is often:
“How powerful should the WiFi antenna be?”
That is usually the wrong place to start.
A reliable outdoor WiFi coverage antenna should be selected according to the shape of the area, the location of users, the height of the access point, the surrounding obstacles, the WiFi frequency bands, and the type of devices that need to connect.
A high-gain antenna does not automatically create better coverage. It changes the way RF energy is distributed.
In some projects, one centrally mounted omnidirectional antenna may be appropriate. In others, a sector antenna aimed toward a defined area is more efficient. A long, narrow site may benefit from directional coverage. A large or irregular area may need several APs rather than one extremely high-gain antenna.
Good WiFi coverage therefore begins with a map, not a product datasheet.
1. Start by Defining the Area You Actually Need to Cover
Before selecting an antenna, draw the target area.
Do not write only “500 meters WiFi coverage” or “large outdoor area.”
The geometry matters.
Ask:
- How long and wide is the site?
- Are users distributed in every direction?
- Are they concentrated in one direction?
- Is the area circular, rectangular, narrow, or irregular?
- Are there separate buildings or zones?
- Are users mainly close to the AP or near the edge?
- Are client devices on the ground, on vehicles, inside buildings, or mounted on equipment?
- Is the terrain flat?
- Are there different elevations?
Two sites with the same total area can need completely different antenna systems.
For example, an AP located in the center of an open yard with users surrounding it may suit an omnidirectional pattern.
An AP mounted on the edge of a property does not need to radiate half of its energy outside the property. A directional or sector antenna may make more sense.
A long road, pipeline corridor, construction corridor, or row of buildings may require a more focused pattern.
The first design decision is therefore not antenna gain.
It is coverage shape.

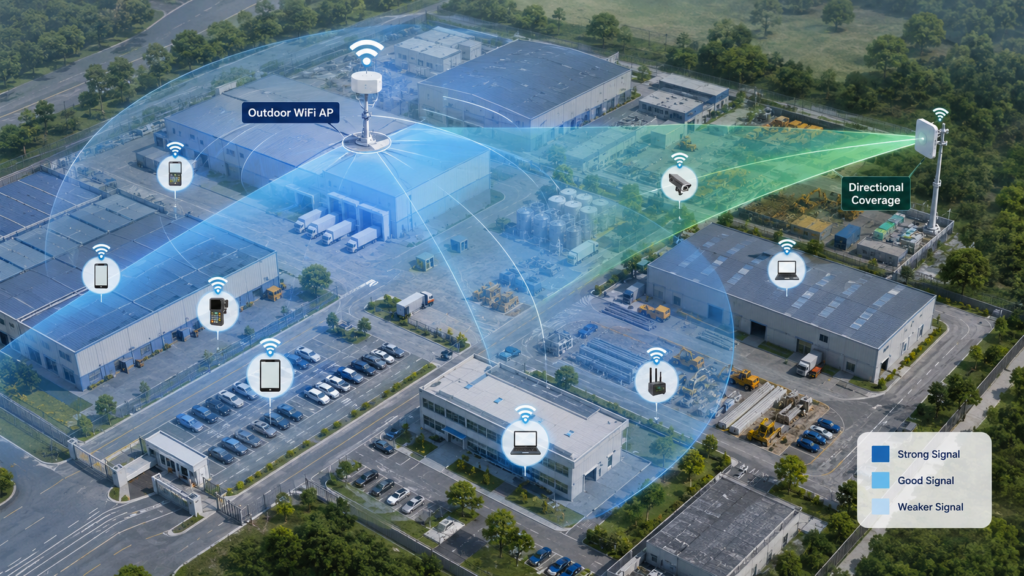

2. Match the Antenna Pattern to the Coverage Shape
A useful starting point is to divide outdoor WiFi applications into several basic geometries.
| Coverage requirement | Possible antenna approach | Main design concern |
|---|---|---|
| Users around a central AP | Omnidirectional antenna | 360° horizontal coverage |
| Users mainly in one large direction | Sector antenna | Horizontal beamwidth and downtilt |
| Long, narrow area | Directional/panel antenna | Correct aiming and beamwidth |
| One fixed remote building | Directional point-to-point link | Line of sight and alignment |
| Several separated zones | Multiple APs | Roaming, channel planning and capacity |
| Small indoor commercial area | Ceiling/integrated AP antenna | Even indoor distribution |
RFLink’s Omnidirectional vs Directional Antenna guide explains the fundamental difference.
An omnidirectional antenna distributes RF energy broadly around the antenna in the horizontal plane.
A directional antenna concentrates more of that energy toward a defined direction.
Neither is universally better.
The correct choice depends on where the clients are located.
3. When Does an Omnidirectional WiFi Antenna Make Sense?
An omnidirectional antenna is useful when WiFi users are distributed around the access point.
Typical examples include:
- an outdoor AP in the center of a yard;
- a farm building surrounded by work areas;
- a central monitoring station;
- a small campsite;
- a courtyard;
- an equipment area where devices may approach from different directions.
RFLink currently offers a 2.4 GHz 5 dBi fiberglass omnidirectional antenna covering 2400–2500 MHz as one example of this antenna format.
The important word here is omnidirectional, not simply “5 dBi.”
A vertical omnidirectional antenna typically provides broad horizontal coverage but does not radiate equally upward and downward.
Its three-dimensional pattern is closer to a flattened doughnut than a sphere.
This becomes very important when the antenna is installed high above the users.
4. When Is a Sector or Directional Antenna Better?
Suppose an AP is mounted at the edge of an industrial yard.
All client devices are in front of the building.
Using a 360-degree omnidirectional antenna may send a significant portion of RF energy toward areas where no coverage is required.
A sector or directional antenna can concentrate the coverage toward the target zone.
This can be useful for:
- parking areas;
- construction sites;
- outdoor storage yards;
- sports fields;
- long warehouse aisles;
- farms;
- ports;
- mines;
- campsites;
- public outdoor spaces;
- point-to-multipoint networks.
RFLink’s current Internal Directional AP Antenna category includes multi-port AP antenna designs developed around controlled directional coverage.
The current 19-port reference design supports 2.4 GHz, 5 GHz and 6 GHz antenna paths and is intended to demonstrate how antenna layout, MIMO ports, reflectors and the AP housing can be designed together rather than treating each antenna as an isolated component.
For an AP manufacturer, that distinction is important.
The antenna pattern is part of the product architecture.
5. Higher Gain Does Not Mean “Better WiFi Everywhere”
One of the most common WiFi coverage mistakes is selecting the antenna with the highest dBi value.
Antenna gain does not create additional RF power.
It redistributes radiation.
RFLink’s guide to antenna gain explains this relationship between gain and radiation pattern.
Imagine squeezing a balloon.
When the pattern becomes stronger in one direction, it generally becomes weaker somewhere else.
For an omnidirectional antenna, increasing gain often creates a flatter vertical radiation pattern.
That may help cover clients farther away at approximately similar elevations.
But it can also reduce coverage toward devices located significantly above or below the antenna.
This is why a high-gain antenna mounted high on a tower can sometimes provide disappointing WiFi to devices almost directly underneath it.
The problem is not necessarily insufficient transmit power.
The clients may simply be outside the strongest part of the vertical radiation pattern.
6. Client Devices Should Be Inside the Effective Vertical Beam
This point deserves special attention.
It is sometimes said that the WiFi antenna and the devices being covered should “stay on the same vertical plane.”
That is a useful intuition, but technically the more precise requirement is:
The target devices should fall inside the useful elevation beam of the antenna.
They do not need to be at exactly the same height.
Suppose an outdoor AP is installed on a 15-meter pole while phones, cameras and terminals are located approximately 1–2 meters above the ground.
If the antenna uses a relatively broad vertical beam, this height difference may not be a problem.
But if a high-gain antenna has a narrow vertical beam and is installed without appropriate electrical or mechanical downtilt, much of its strongest RF energy may pass above nearby users.
A similar problem occurs with sector antennas mounted on towers.
The designer must consider:
- antenna mounting height;
- vertical beamwidth;
- electrical downtilt;
- mechanical downtilt;
- near-user distance;
- far-user distance;
- terrain elevation.
Do not optimize only for the farthest client.
A network also needs to cover clients close to the AP.
7. 2.4 GHz and 5 GHz Should Not Be Treated as Identical Coverage Layers
Many modern WiFi APs support multiple frequency bands.
For outdoor planning, 2.4 GHz and 5 GHz should not simply be treated as two labels for the same coverage.
Under similar conditions, the lower-frequency 2.4 GHz band generally experiences lower free-space path loss than 5 GHz and can often provide a more forgiving coverage layer around obstacles.
However, 2.4 GHz also has less available spectrum and often experiences more interference from other networks and devices.
5 GHz can provide greater channel availability and higher capacity, but the coverage behavior will differ.
The design question should therefore include:
- Which devices support 2.4 GHz?
- Which support 5 GHz?
- What throughput is required?
- How crowded is the spectrum?
- How far from the AP are users located?
- Are there walls, vegetation or structures between them?
For modern multi-band AP manufacturers, RFLink also develops customized internal antenna assemblies for 2.4 GHz, 5 GHz and project-specific multi-band systems.
8. WiFi Is a Two-Way Link
This is one of the most important concepts in large-area WiFi coverage.
Imagine installing a powerful AP with a high-gain antenna.
A phone at the edge of the site may be able to receive the AP beacon.
That does not automatically mean the phone can transmit strongly enough for the AP to receive its return traffic reliably.
WiFi communication is bidirectional.
The access point and client both matter.
Typical client devices may include:
- smartphones;
- tablets;
- laptops;
- IP cameras;
- handheld terminals;
- IoT gateways;
- industrial controllers;
- scanners.
Many of these devices use small internal antennas and have much less favorable installation conditions than the outdoor AP.
Therefore, “I can see the WiFi SSID” is not sufficient proof of usable coverage.
A practical WiFi test should check:
- association reliability;
- uplink and downlink throughput;
- packet loss;
- latency;
- retransmissions;
- roaming where relevant;
- performance at the edge of the service area.
The weakest part of the two-way link often determines real coverage.
9. One AP Cannot Solve Unlimited Capacity Requirements
Coverage and capacity are different problems.
An antenna may allow an AP to reach a large area, but that does not mean one AP can efficiently serve every device in that area at the same time.
Consider the difference between:
Scenario A: 20 low-data-rate field terminals.
Scenario B: 200 users streaming video.
The geographic area might be identical, but the network requirement is completely different.
When planning outdoor WiFi, determine:
- number of simultaneous clients;
- expected traffic per client;
- video usage;
- uplink requirements;
- latency sensitivity;
- roaming requirements;
- channel availability;
- acceptable contention.
Sometimes the correct solution is not a larger antenna.
It is more APs with smaller, better-controlled coverage cells.
10. Check the Environment Before Finalizing the Antenna
A coverage map drawn on an empty satellite image is not enough.
Look for:
- metal buildings;
- corrugated steel roofs;
- storage containers;
- trees;
- dense vegetation;
- walls;
- glass;
- machinery;
- vehicles;
- hills;
- stacked goods;
- tanks;
- other WiFi networks.
Metal can block and reflect WiFi signals.
Trees and foliage can add attenuation and scattering, particularly when the signal must pass through many meters of vegetation.
A site that looks open in winter may become a very different RF environment when trees are fully covered with leaves.
An industrial yard may also change when vehicles, containers or stock are moved.
The coverage design should reflect the operating environment, not only the site when the survey is performed.
11. Antenna Height Helps—Until It Creates Another Problem
Raising an antenna can improve path clearance.
That does not mean the highest possible mounting point is automatically the best.
Increasing height affects:
- vertical coverage geometry;
- cable length;
- coaxial loss;
- wind loading;
- maintenance;
- lightning protection requirements;
- structural installation.
If an antenna is placed higher using a very long RF cable, part of the link improvement may be lost through cable attenuation.
Where practical, it can be better to locate the AP radio closer to the antenna and extend Ethernet or fiber rather than running a long RF feeder.
The complete installation must be considered.
12. A Practical Outdoor WiFi Coverage Planning Workflow
A useful planning process can follow seven steps.
Step 1: Draw the Coverage Boundary
Mark exactly where WiFi must work.
Step 2: Mark Client Locations and Heights
Identify fixed devices, mobile users and critical endpoints.
Step 3: Decide the Coverage Shape
Determine whether the site requires omnidirectional, sectorized, directional or multi-AP coverage.
Step 4: Confirm the Backhaul
Determine where internet or upstream network connectivity enters the site.
Step 5: Choose AP and Antenna Locations
Consider path clearance, height, vertical beam and cable routing.
Step 6: Check Obstacles and Interference
Record metal structures, vegetation and competing WiFi networks.
Step 7: Perform a Real Site Survey
Validate the final design using actual AP hardware and representative client devices.
Do not rely only on theoretical range.
Common Outdoor WiFi Coverage Mistakes
- Choosing the antenna only by dBi.
- Trying to cover every direction with an antenna mounted at the edge of the site.
- Mounting a high-gain antenna too high without checking the elevation beam.
- Testing only whether the SSID is visible.
- Ignoring client uplink limitations.
- Ignoring trees or metal structures.
- Trying to solve capacity problems with additional antenna gain.
- Using excessively long coaxial cable.
- Installing an antenna directly behind a metal roof edge.
- Designing the whole system without a site survey.
FAQ
What type of antenna is best for outdoor WiFi coverage?
It depends on the coverage geometry. An omnidirectional antenna can suit users around a central AP, while sector or directional antennas are useful when users are concentrated in defined directions.
Does a higher-gain WiFi antenna provide longer range?
It can increase signal strength in certain directions, but higher gain also changes beamwidth. It does not automatically improve coverage everywhere.
How high should an outdoor WiFi antenna be installed?
High enough to improve path clearance, but the elevation beam must still cover the intended users. Cable loss, mechanical installation and nearby obstacles should also be considered.
Can one outdoor AP cover a very large area?
Possibly for low client counts and suitable RF conditions, but geographic coverage and network capacity are different requirements. A large or high-density site may require multiple APs.
Should WiFi clients be at the same height as the antenna?
Not exactly. The important point is that users remain inside the antenna’s useful vertical radiation pattern.
Conclusion
Successful outdoor WiFi coverage starts with the area, not the antenna catalog.
Before choosing an outdoor WiFi coverage antenna, identify where the users are located, how wide the area is, whether coverage is required in every direction, how high the AP will be installed, what obstacles exist, and how many devices must connect.
Then choose the radiation pattern that matches the real geometry.
Omnidirectional, sector and directional antennas each solve different coverage problems.
For AP manufacturers and wireless equipment developers, antenna performance can also be strongly affected by the housing, PCB layout, reflector, MIMO configuration and internal mounting structure. RFLink’s custom antenna solutions support device-level antenna design and tuning when a standard antenna pattern or mechanical format cannot meet the target coverage requirement.
