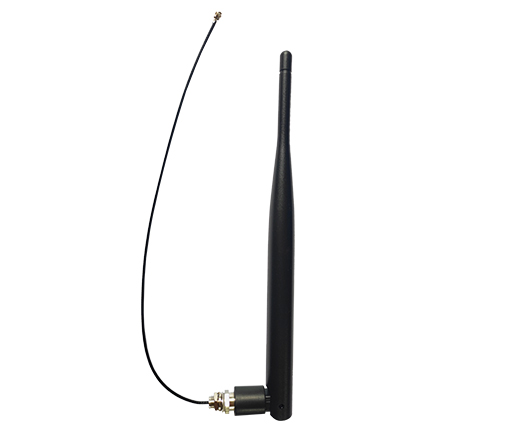

868MHz 3dBi IPEX Rubber Duck Antenna with 200mm Cable
Cable-fed 868MHz 3dBi IPEX rubber duck antenna covering 830–894MHz, with IPEX-1 connector and 200mm RG1.37 cable. The 197mm ABS body provides omnidirectional coverage for embedded LoRa devices and flexible equipment integration.
| Antenna Type | Rubber Duck Antenna |
|---|---|
| Frequency Range | 830-894MHz |
| Gain | 3dBi |
| VSWR | ≤1.5 |
| Connector | IPEX-1 |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 10W |
| Cable | RG1.37 |
| Cable Length | 200mm |
| Dimensions | 197mm |
| Weight | 18g |
| Material | ABS |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
868MHz IPEX rubber duck antenna covers 830–894MHz for embedded LoRa devices. This 868MHz IPEX rubber duck antenna includes 3dBi gain, an IPEX-1 connector, and 200mm RG1.37 cable. The 868MHz IPEX rubber duck antenna uses a compact ABS body for flexible routing and all-around coverage.
