RF DP P2458 14HV 20dBi High Gain Directional Panel Antenna 2400-2500/5725-5850 WIFI Outdoor

Infotainment systems, Routers,
Public Wireless Hotspot, Gateways,
Public Transportation, Network Devices, Security Cameras
LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications
Cellular networks
DAS (Distributed Antenna Systems)

Description
Parameter

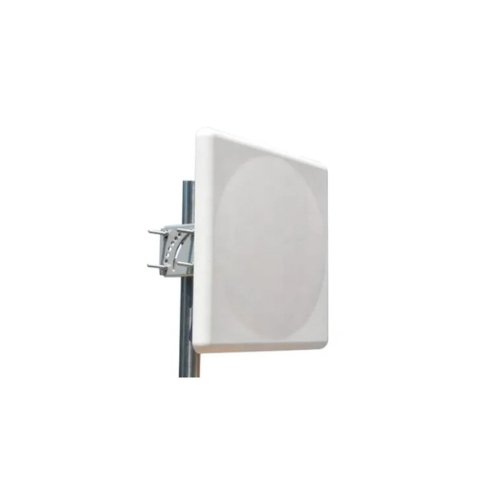

The RFLink RF DP P2458 14HV Directional Panel Antenna combines vertical polarization with high gain in a single enclosure. It is a professional quality antenna designed primarily for point-to-point applications in the 2.4 GHz frequency bands. The unit can be used with APs and Routers with 1 or 2 antenna ports.

Key Features
Dual polarity feed system – (2) N-Female connectors

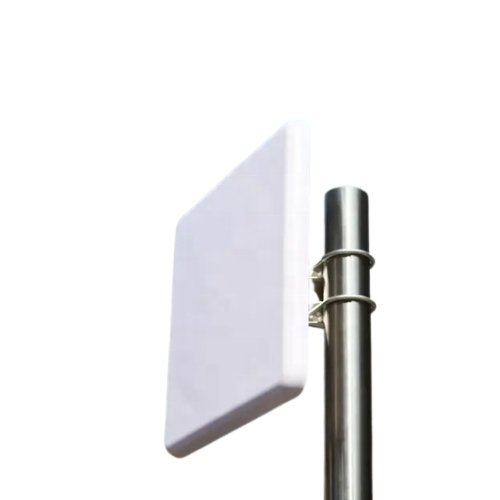

Includes tilt and swivel mast mounting
Vertical and horizontal polarization
High gain operation
UV-resistant radome for all-weather operation

Model	RF DP P2458 14HV
Dimension (mm)	234x194x35 mm
Frequency	2400-2500 / 5725-5850 MHz
Gain	12/14 dBi
Horizontal Half-power Beam Width:	68°/15°
Vertical Half-power Beam Width:	65°/15°
V.S.W.R(Typ.)	1.5
Polarization	Vertical
Input.Power	100 W( MAX)
Impedance ( Ω)	50
Connector	N-Female
Mounting	Pole mount
