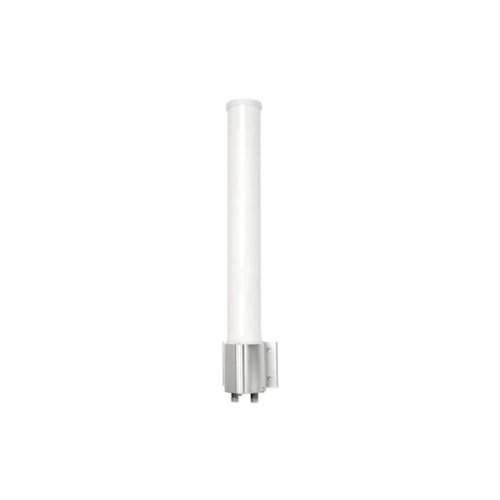

Mimo Omni Antenna

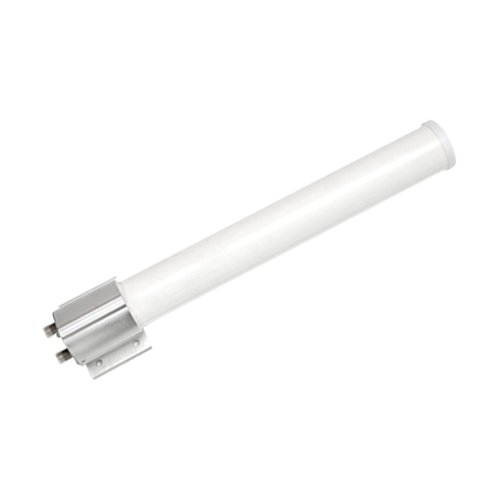

RF-DP-O235810 Dual Polarized 2350-5850MHz Frequency 10 dBi Mimo Omni Antenna - Image 2

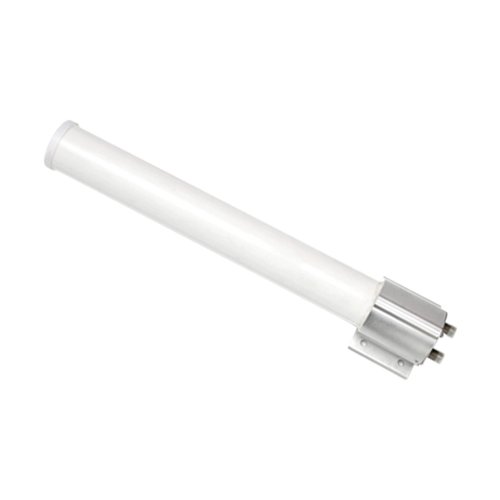

RF-DP-O235810 Dual Polarized 2350-5850MHz Frequency 10 dBi Mimo Omni Antenna - Image 3

RF-DP-O235810 Dual Polarized 2350-5850MHz Frequency 10 dBi Mimo Omni Antenna

Dual polarized 10 dBi MIMO omni antenna, 2350-5850MHz frequency. High-performance for wide-range coverage.

  • MIMO – Multiple-Input and Multiple-Output
  •  Dual Polarity feed system in single enclosure
  •  Dual polarity, high gain operation
  •  UV-resistant radome for all-weather operation
  •  2.4-5.8GHz Outdoor Wireless LAN systems
  •  Supports 1×2 and 2×2 MIMO AP/Router
  •  Supports IEEE 802.11 b/g/n applications
  •  WiMax, WISP, WiFi, Communication
  •  Hospitality, Industrial, Municipality, MTU/MDU
Contact US
Dual Polarized Mimo Omni Antenna Overview
Features
  • Features HyperLink dual polarized 2.4 to 5.8 GHz 10 dBi omni antenna
  • Cost savings compared to purchasing anternna to use with the radio
  • Kit includes mounting bracket and cable assemblies
Application
  • Disaster recovery and rapid deployment applications
  • High Power, Long Range Point to Point applications
  • Campus and Academic Installations
  • Municipal and Government Installations
  • Wireless Internet Providers and ISPs
Frequency2350-2550MHz
5150-5850MHz
Gain10 dBi
Elevation Beamwidth11°
Downtilt4°
PolarizationDual-linear
V.S.W.R1.5:1
Input Power50 W( Max)
Connector2xN-Female
Dimension (mm)Ø75 x 1100
Waterproof StandardIP67
MountingPole mount
