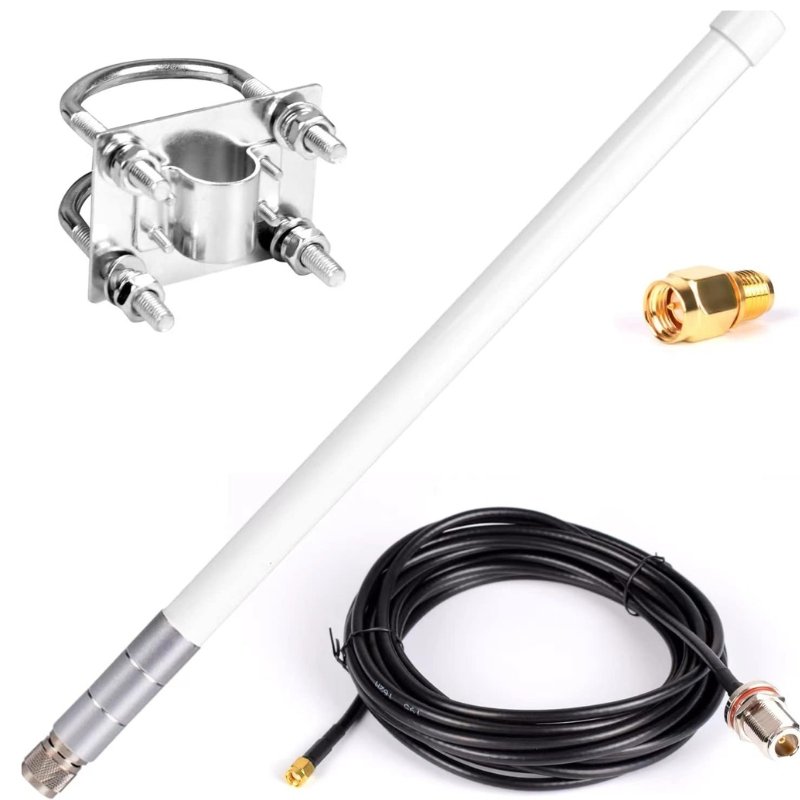

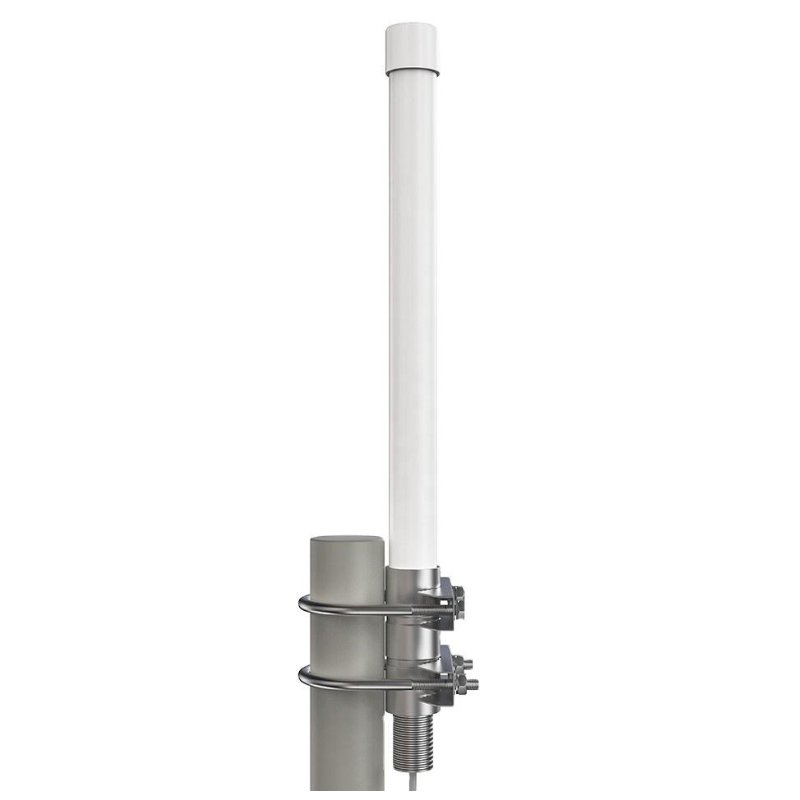

Customizable Frequency Omnidirectional Fiberglass Antenna 900MHz 1.2GHz 2.4GHz 5.2GHz 5.8GHz Outdoor Waterproof

Customizable omnidirectional fiberglass antenna (900MHz-5.8GHz), Outdoor, waterproof.

Frequency Range(MHz)：900-5800 MHz
Gain: 3-12 dbi
Center frequency characteristic impedance (Ω)：50
Connector Type：N-Female or N-Male

Description
Parameter

Omnidirectional Fiberglass Antenna Overview

Security monitoring, wireless router, mobile phone antenna, Internet of Things smart, smart home, car mobile antenna, network HD camera, advertising all-in-one, shared vending machine, TV antenna, radio antenna, 5g image transmission, drone antenna
Frequency: vhf-uhf antenna, 315-430-470mhz antenna, 868-915mhz antenna, 2G GSM/CDMA(890-900-1800-1900mhz) antenna, 3G (850-900-1800-1900-2100mhz) antenna, 2.4G /WIFI network card (2400-2500mhz), GPS antenna (1575. 42mhz), GPS BD(1575 1561), GPS GSM 4g antenna, 4G(700-960/1700-2680mhz), NB(824-960mhz) antenna, 5g antenna (2150-5850mhz), 2.4G + 5g dual-band
Materials: Rubber/plastic, automotive/suction cup, glass antenna, positioning/navigation/navigation, built-in, antenna cable, antenna connector, wire/cable, custom antenna.

Frequency	900-5800 MHz
Polarization	Vertical
Gain	3-12 dBi
Horizontal Beamwidth	360°
Vertical Beamwidth	17/33°
Impedance	50 Ω
V.S.W.R	≤2.0
Input Power	50 W( Max)
Connector	N-Female / Customizable
Dimension (mm)	Φ30-Φ62 mm
Radome material	Fiberglass
