Meshtastic Antenna 915 Mhz 6 dbi 4G Waterproof Outdoor Antenna Omnidirectional Fiberglass Antenna

Meshtastic Antenna 915MHz 6dBi 4G waterproof outdoor omnidirectional fiberglass antenna.

Frequency Range(MHz)：915 MHz
Gain: 6 dbi
Center frequency characteristic impedance (Ω)：50
Connector Type：N-Female or N-Male

Description
Parameter

Short Overview About Meshtastic Antenna

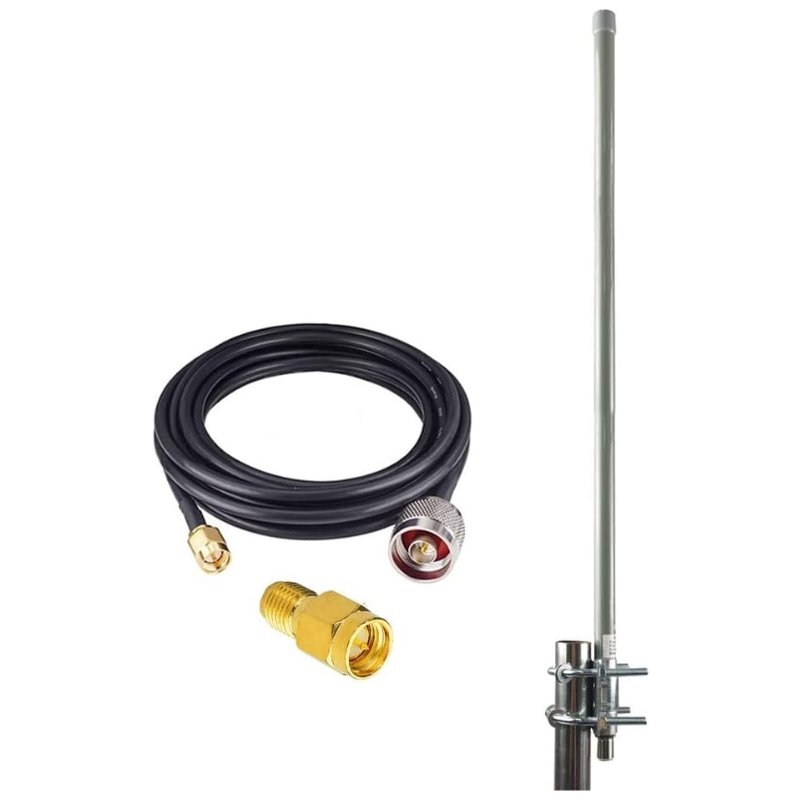

915 MHz 6dBi Omni Fiberglass antenna is a high-gain omnidirectional antenna designed for Wi-Fi, IoT, and wireless communication systems. Its fiberglass construction ensures durability and weather resistance, making it suitable for both indoor and outdoor installations. With a 6 Bi gain, it significantly enhances signal strength and coverage compared to standard antennas.The omnidirectional radiation pattern (360° horizontal coverage) ensures uniform connectivity, ideal for applications like routers,access points, and surveillance systems. Its sleek design and UV-resistant casing make it a reliable long-term solution for expanding wireless networks.

Frequency	915 MHz
Polarization	Vertical
Gain	6 dBi
Horizontal Beamwidth	360°
Vertical Beamwidth	17/33°
Impedance	50 Ω
V.S.W.R	≤2.0
Input Power	20 W( Max)
Connector	N-Female / Customizable
Dimension (mm)	Φ30-Φ62 mm
Radome material	Fiberglass
