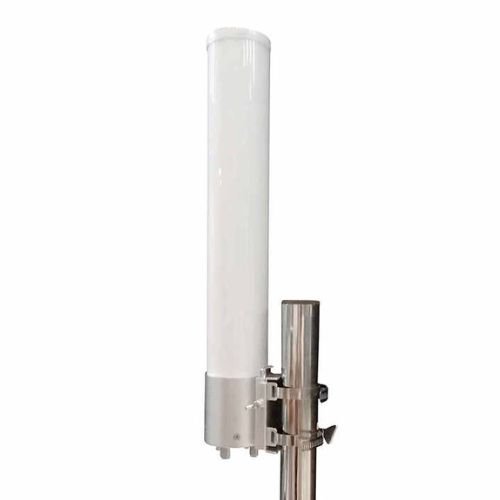

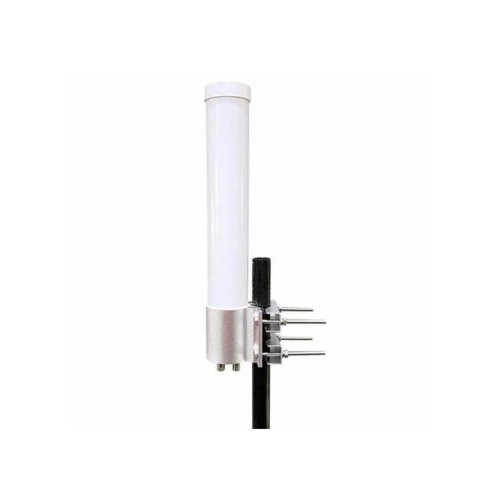

RF-DP-O232510 Omnidirectional Dual Band Antenna 2400Mhz – 5800Mhz with High Gain 10 dBi

RF-DP-O232510 is a professional high gain dual band omnidirectional base station Wi-Fi antenna designed and optimized for the 2.4 and 5.8GHz frequency.

  •  MIMO – Multiple-Input and Multiple-Output
  •  Dual Polarity feed system in single enclosure
  •  Dual polarity, high gain operation
  •  UV-resistant radome for all-weather operation
  •   2.4GHz Outdoor Wireless LAN systems
  •  Supports 1×2 and 2×2 MIMO AP/Router
  •  Supports IEEE 802.11 b/g/n applications
  •  WiMax, WISP, WiFi, Communication
  •  Hospitality, Industrial, Municipality, MTU/MDU
ModelRF-DP-O232510
Dimension (mm)Ø75 x 800
Weight2.4kg
Frequency2350-2550MHz
Gain10 dBi
Elevation Beamwidth12°
Downtilt
V.S.W.R(Typ.)1.7:1
Wind Loading200km/H(125mph)
PolarizationDual-linear
Input.Power100W
Cross-pol Isolation25dB
Connector2xN-Female
MountingPole mount
